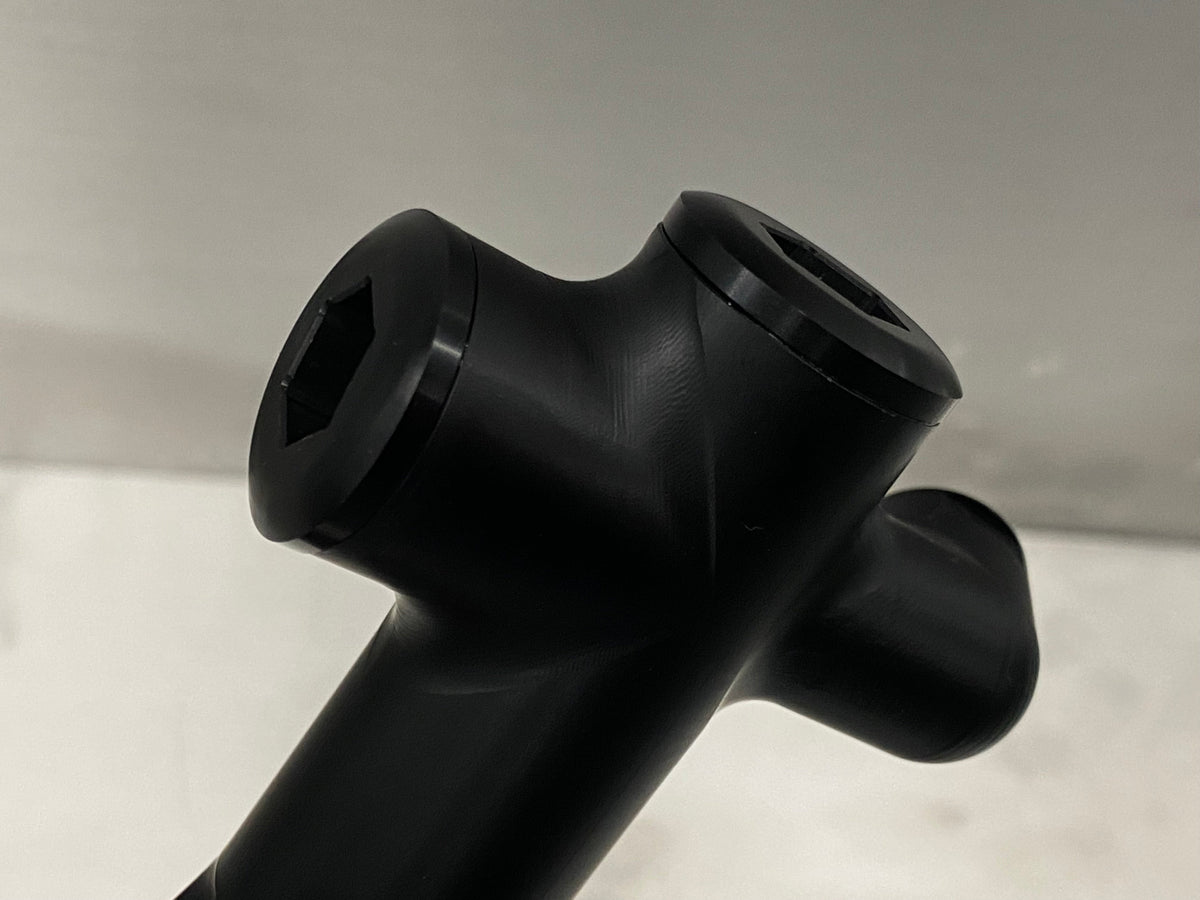

Billet LSA/LS9 Fuel Rail

Billet LSA/LS9 Fuel Rail is a fuel rails solution for performance fuel-system applications. Review the fitment and configuration options below to select the correct setup for your vehicle.

These fuel rails are made entirely in house from a 15"x3"x2.5" piece of 6061-T6 aluminum. Each end has an 8 ORB port as well as each drill access hole for a total of six ports allowing many configurations for connections. Each injector boss is also machined to accept a retaining clip to ease installation effort and keep injectors in place. Unlike any other rail, the mounting brackets are machined into the piece to make for a one piece rail to give a complete and sleek overall look. Each set is anodized black for corrosion protection. Other colors are available for an extra cost (and extended lead time).

We offer our own low profile 8 ORB plugs meant to match these rails perfectly (available here). A minimum of nine is required if you use the rail itself as a means to connect to the other rail, otherwise ten are required if you Y your fuel lines before the rails.
