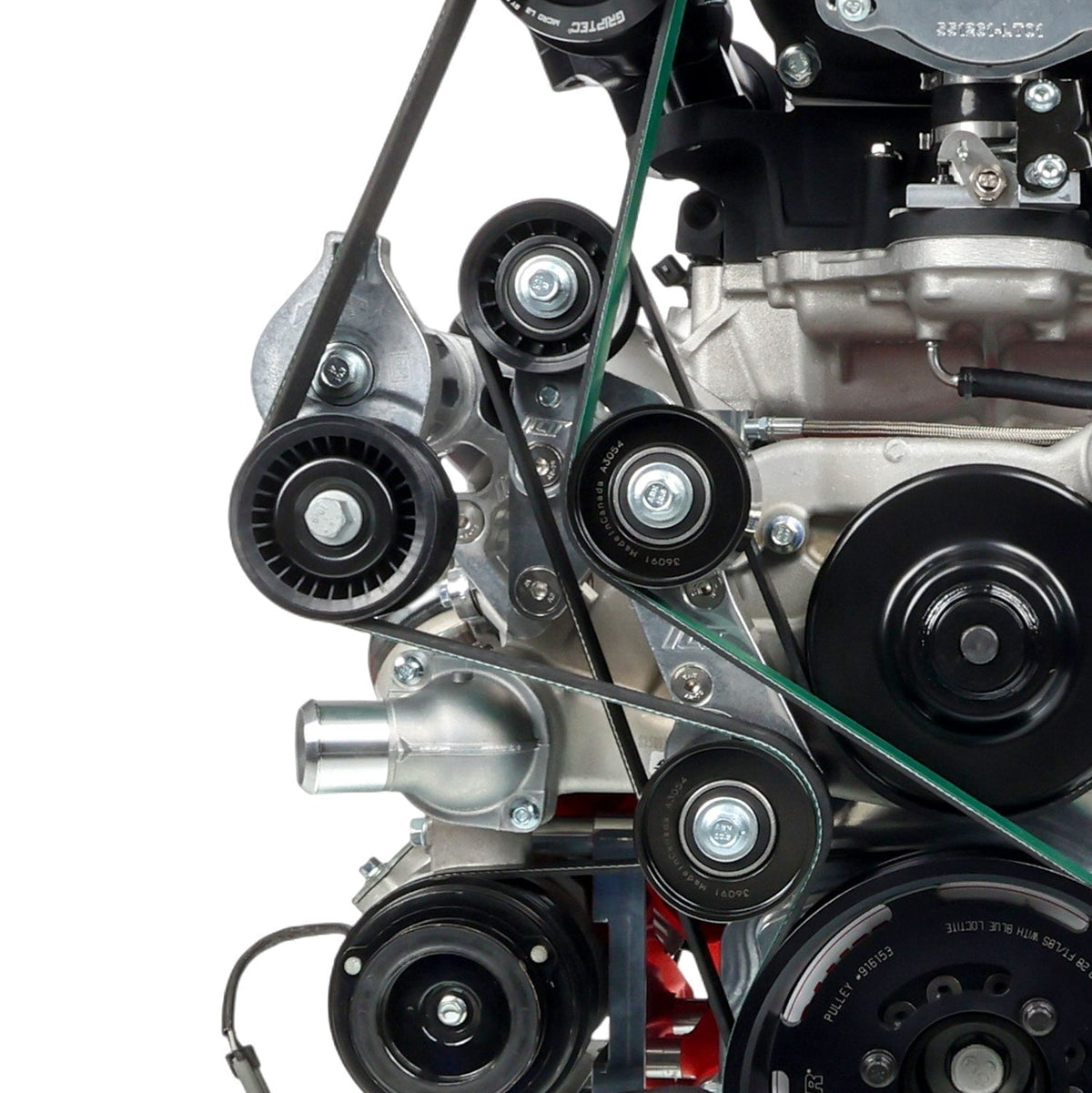

ICT Billet LS Engine to Escalade V 10 Rib Idler and Belt Tensioner Brackets Kit

LSA Supercharger Idler and Belt Tensioner

Product details:

• Uses factory LSA belt tensioner location for the 8 rib belt
• Does NOT include the factory LSA 8 rib belt tensioner
• Compatible with both CTS-V and ZL-1 LSA superchargers
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum
• Belt lengths when used with: electric water pump - use 610K8 with 105amp alt and w/o 551316 intake adapters

Includes

1. 8-rib belt tensioner bracket
2. 8-rib idler bracket
3. 2 smooth idler pulleys
4. 6-rib Corvette/LSA spacing manual belt tensioner
5. Mounting hardware
6. Instructions

Compatible with

• Chevrolet Camaro ZL1 2012-2015
• Cadillac CTS-V 2009-2015

Helpful Links & Guides

• Torque specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft), FHSC bolts (M10 = 31 lb-ft, M8 = 15 lb-ft)

• Belt length chart
• Required LSA 8 rib belt tensioner
• Replacement 6 rib idler
• Optional billet ribbed and smooth idlers
• Instructions
