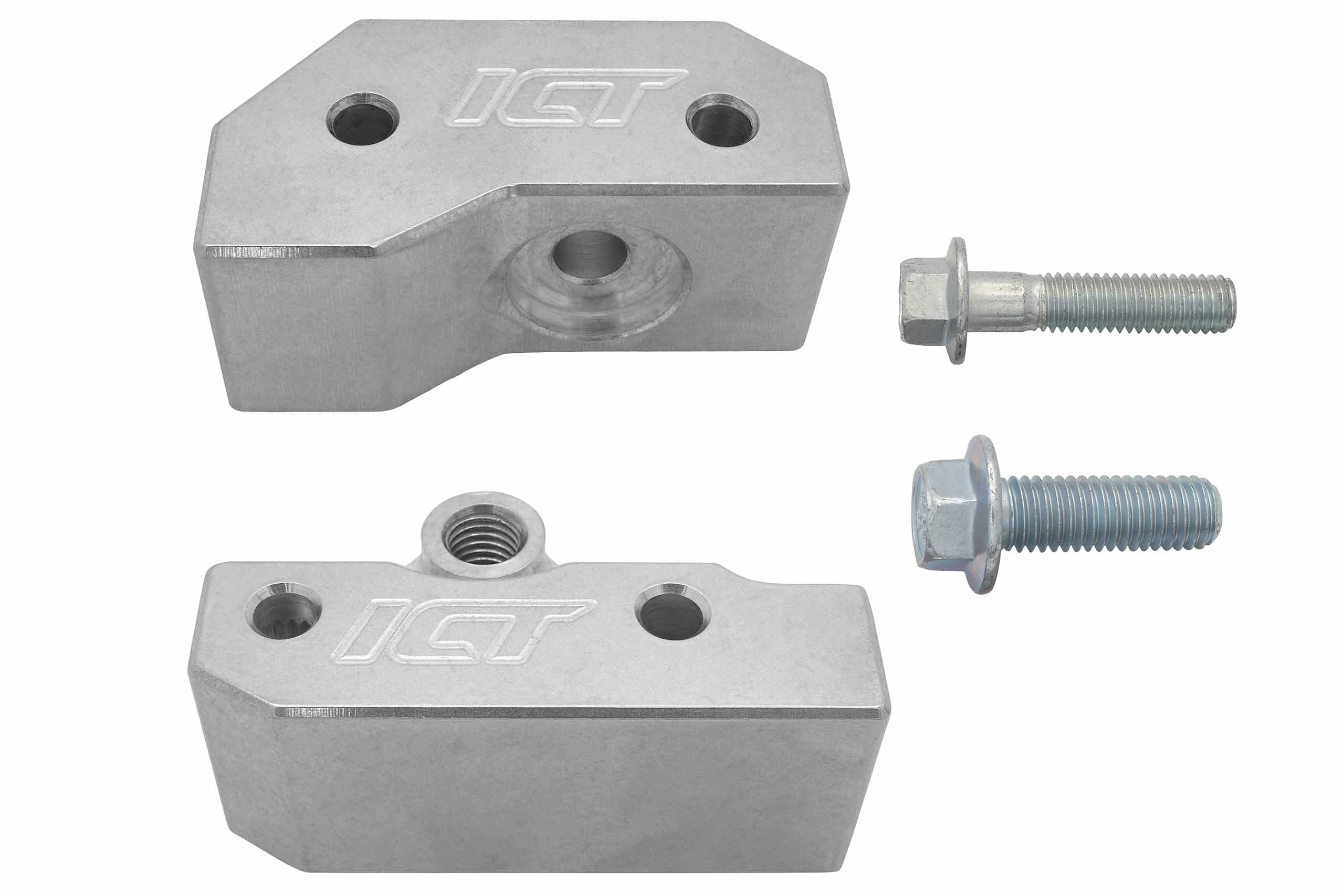

ICT BILLET LS Gen III Knock Sensor Relocation Brackets LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 Valley

LS Knock Sensor Relocation Brackets

Product Details:

• Allows LS Gen 3 knock sensors to be retained and relocated from the valley pan to the bottom edge of the block
• Required if wanting to keep your knock sensors while using an ICT Billet valley pan
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum
• Compatible with: All gen III harnesses and sensors
• Some 4WD applications will require both sensors on the passenger side bracket.
• One of these billet adapters will fit Gen 4 and Gen 5 Blocks (see pictures).
• Fits engine RPO codes: LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33
• Includes: 2 billet aluminum knock sensor brackets, mounting hardware, and instructions
• Requires extending wire harness or using an ICT Billet knock sensor extension harness (ICT# 30"   WEKN030-36 or  60"   WEKN030-60)


Helpful Links & Guides

• Torque specs: Torque specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft)
• Replacement knock sensor SEN010
• ICT Billet Gen 3 or Gen 4 valley pans for knock sensor relocation

Wire assignments:

• Driver side - bank 1 - dark blue wire
• Passenger side - bank 2 - light blue wire
