ICT BILLET LS Sanden 7176 A/C Compressor Bracket Kit Tight Fit Low Mount LQ4 L33 AC Turbo

LS - 4-Rib - Sanden 7176 Air Conditioner Compressor Bracket Kit - Corvette Spacing

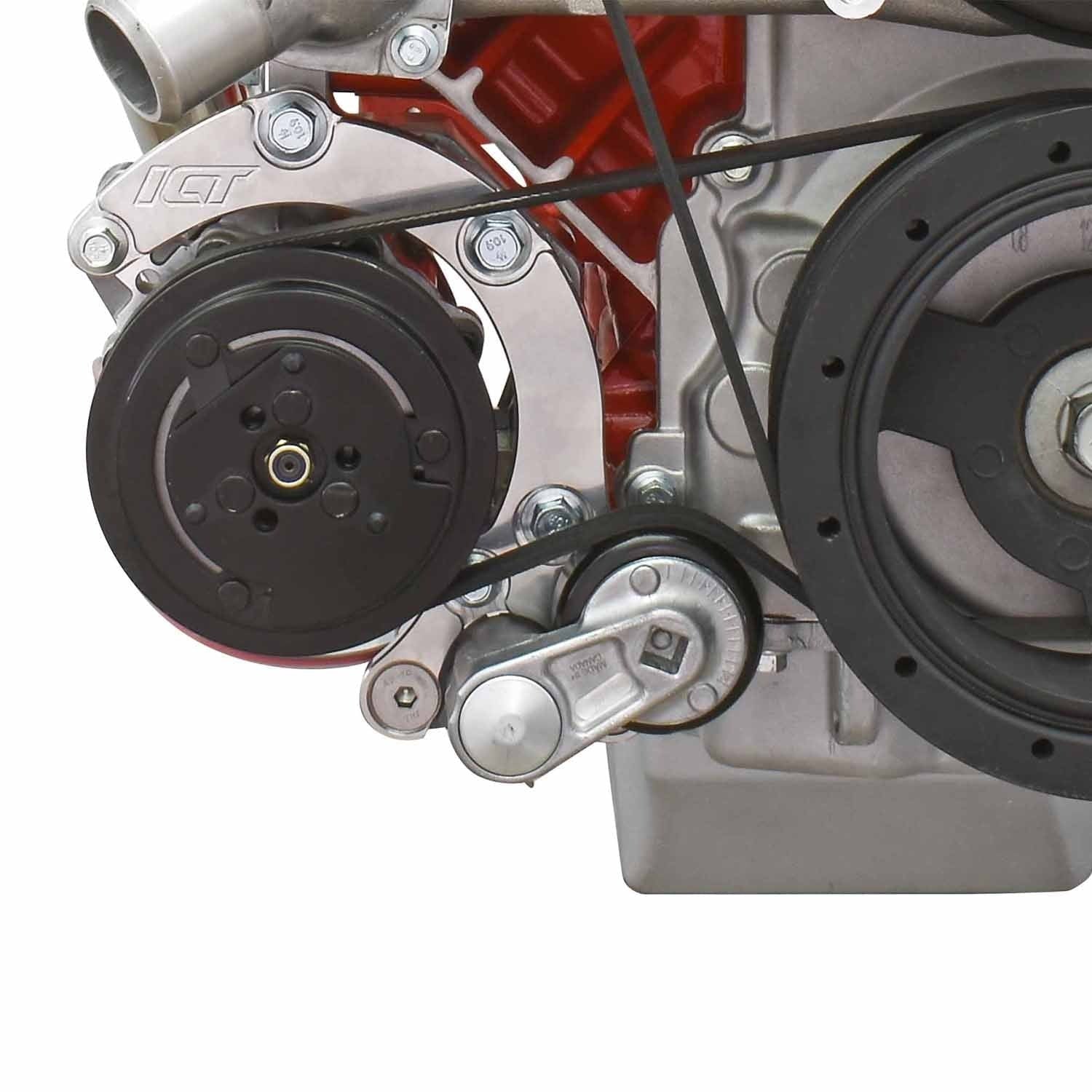

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

• Compatible with '97-'13 Corvette (LS1, LS2, LS3), '04-'15 CTS-V, '08-'09 G8, '14-'17 SS sedan, harmonic balancer
• Compatible with Sanden 7176 SD7 AC compressors (NOT compatible with factory LS compressors)
• Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
• Not compatible with "stock" (forward most) position motor mounts on the ICT adjustable swap plates. Also not compatible with ICT steel engine mounts
• Includes: bracket, mounting hardware, belt tensioner, and instructions
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum


Compatible with (based on vehicle 3D scans by ICT)

• Subaru BRZ 2012-2020

Helpful Links & Guides

• Torque Specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft) FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Replacement tensioner
• Replacement bolt and spacer kit
• Instructions
