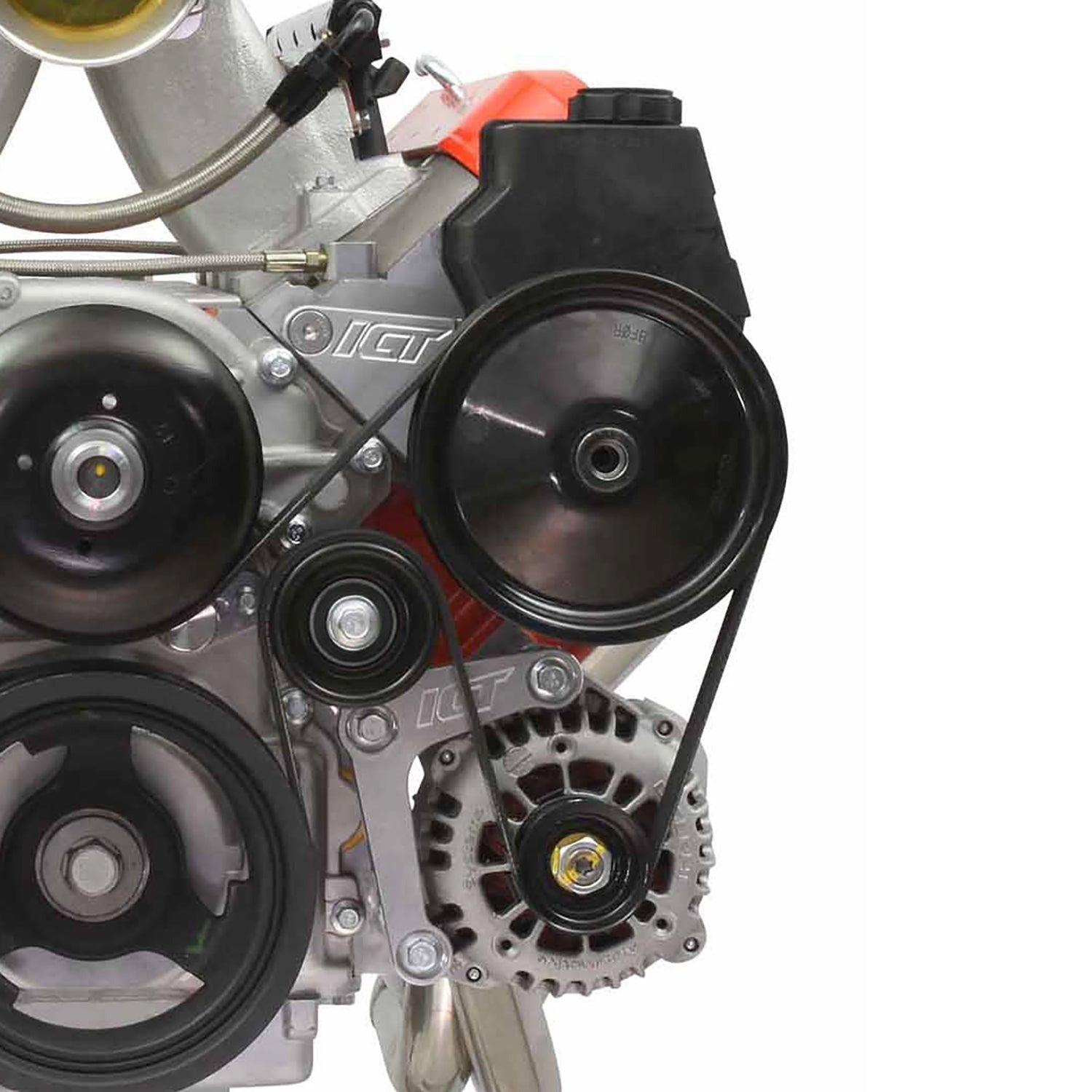

ICT BILLET LS Truck - Alternator / Power Steering Pump Bracket Kit

LS Alternator and Power Steering Pump Bracket for Truck Spacing

Product Details:

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
• Compatible with 1998-02 LS1 Camaro power steering pump and pulley (or billet 2pc pulley)

• Compatible with all LS truck (5.46" bolt pattern) alternators
• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

• Includes: alternator bracket, power steering bracket, smooth pulley, instructions, and mounting hardware
• **Compatible with: all GM LS series engines


*if using an iron engine block, it will only have one of the three holes to mount the alternator.  To get the minimum two holes, use our drill template, then drill & M10 tap.  To get the optional third hole you can use our support bracket

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Camaro 67-69

Helpful Links & Guides

• Torque Specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft), FHCS (M10 = 31 lb-ft)
• Belt length chart
• Replacement smooth pulley
• Billet smooth pulley

• Replacement bolt and spacer kit
• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Replacement bolt and spacer kit for alternator or power steering bracket
• Instructions
