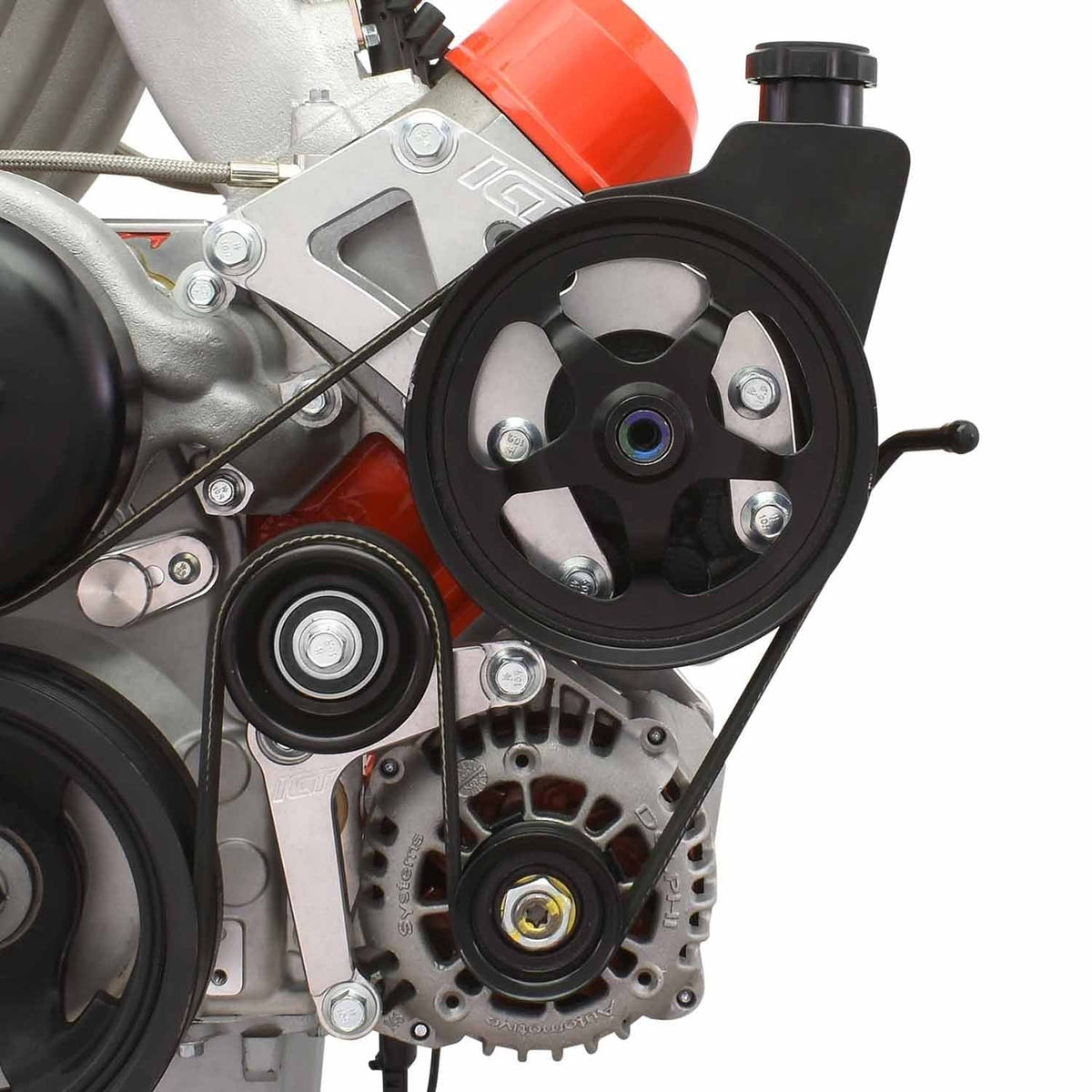

ICT BILLET LS Truck High Mount w/ Type 2 Power Steering Pump & Alternator Bracket Kit

LS Saginaw Power Steering Pump and Alternator Bracket Kit for Truck Spacing

*if using an iron engine block, it will only have one of the three holes to mount the alternator.  To get the minimum two holes, use our drill template, then drill & M10 tap.  or use our strongly recommended bracket and template kit to get the third bracket mounting hole.

Product Details

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer

• Compatible with LS truck, saginaw power steering pump or pulley (or billet 2pc pulley)

• Compatible with: all LS series engines
• Compatible with LS truck bolt pattern (5.46") alternators

• Made in Wichita, Kansas from 6061-T6 USA produced billet aluminum

• Includes: brackets, smooth idler pulley, instructions, and mounting hardware

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Camaro  82-92

• Chevrolet Chevy II  64-67

Helpful Links

• Optional alternator wire harness extension: 4 pin connector or 2 pin
• Replacement bolt and spacer kit for alternator or power steering bracket
• Torque specs: Flange bolts (M10 = 37 lb-ft) FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Billet smooth pulley
• Replacement bolt and spacer kit
• Instructions
