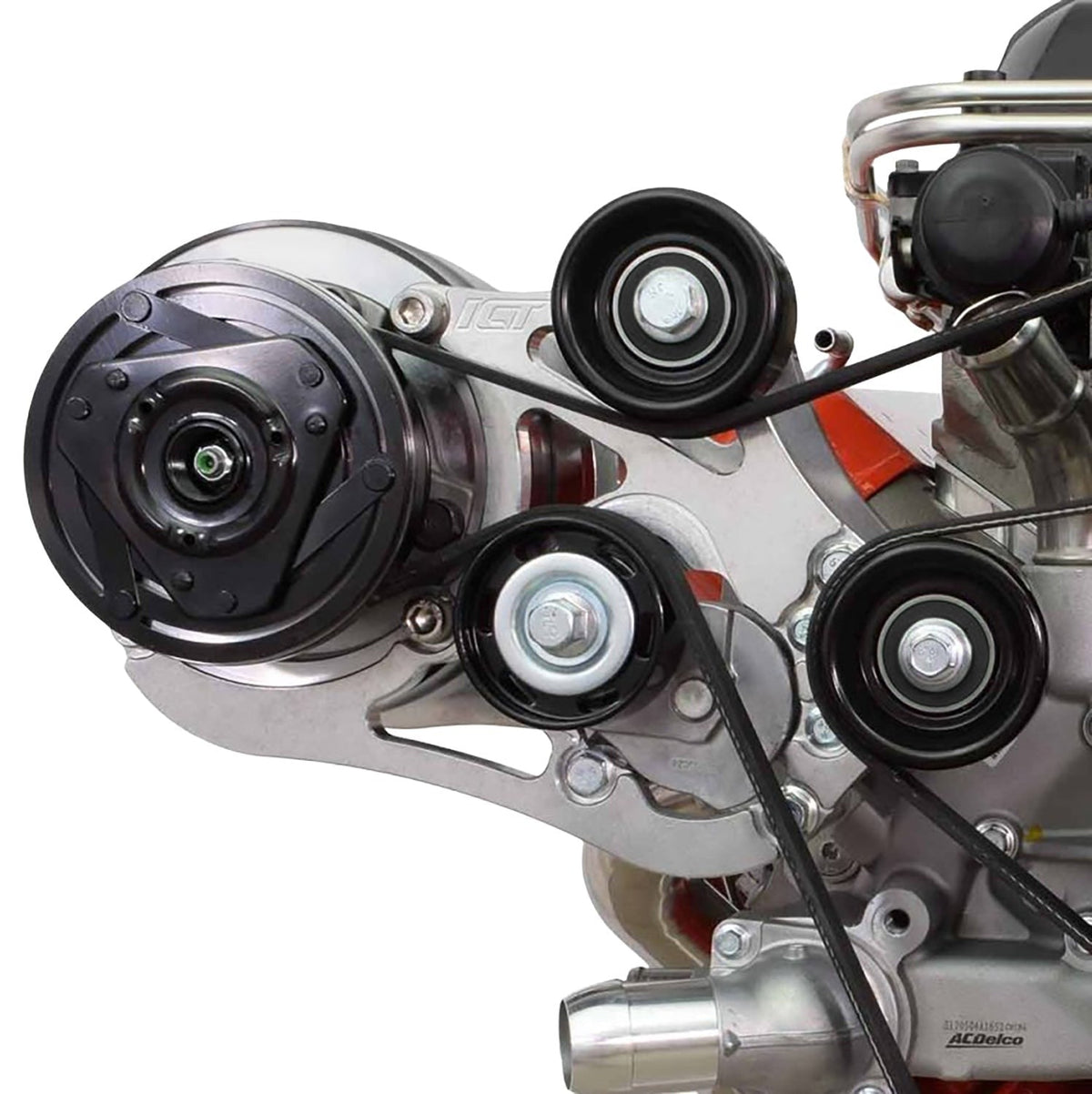

ICT BILLET LSA Supercharger High Mount A/C GM R4 Compressor Bracket Kit CTS-V ZL1 6-Rib

LSA Supercharger High Mount A/C Compressor Bracket Kit - GM R4 - Truck Spacing

Mounts A/C compressor up on the passenger side while tying into the supercharger belt-pulley system, using the truck-spacing 6-rib belt.

• Compatible with 99-13 GM Truck/SUV and 10-15 Camaro harmonic balancer
• Compatible compressors: GM R4
• Compatible Water Pumps: LS Truck : Gen 3, Gen 4, LS3 Camaro, or LS1 Camaro with water pump spacers
• Universal Truck spacing application. This bracket will work with supercharged and non-supercharged applications.
• Includes: A/C compressor bracket, belt tensioner, mounting hardware, and instructions
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum


Helpful Links & Guides

• Torque specs: Flange bolts (M10 = 37 lb-ft, M8 = 18 lb-ft) FHSC bolts (M10 = 31 lb-ft)
• Belt length chart
• Replacement ribbed pulley
• Billet ribbed pulley
• Replacement smooth pulley
• Billet smooth pulley
• Replacement Tensioner

• Replacement bolt and spacer kit
• Instructions
