ICT BILLET Oil Cooler Adapter -6AN ORB Oring In/Out Port Plate LS1 LSX LS3 LS Kit

LS Oil Cooler Line Adapter

Build your own custom oil cooler system for your LS engine with this adapter.  The adapter has, dual -10AN ORB (oring) holes.  Call if you want smaller AN fitting sizes included, instead of the 10AN fittings.

• Compatible with all wet sump LS series GM engines (EXCEPT GTO front sump oil pans and LS4 oil pans)
• Torque spec: 106 in lbs
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

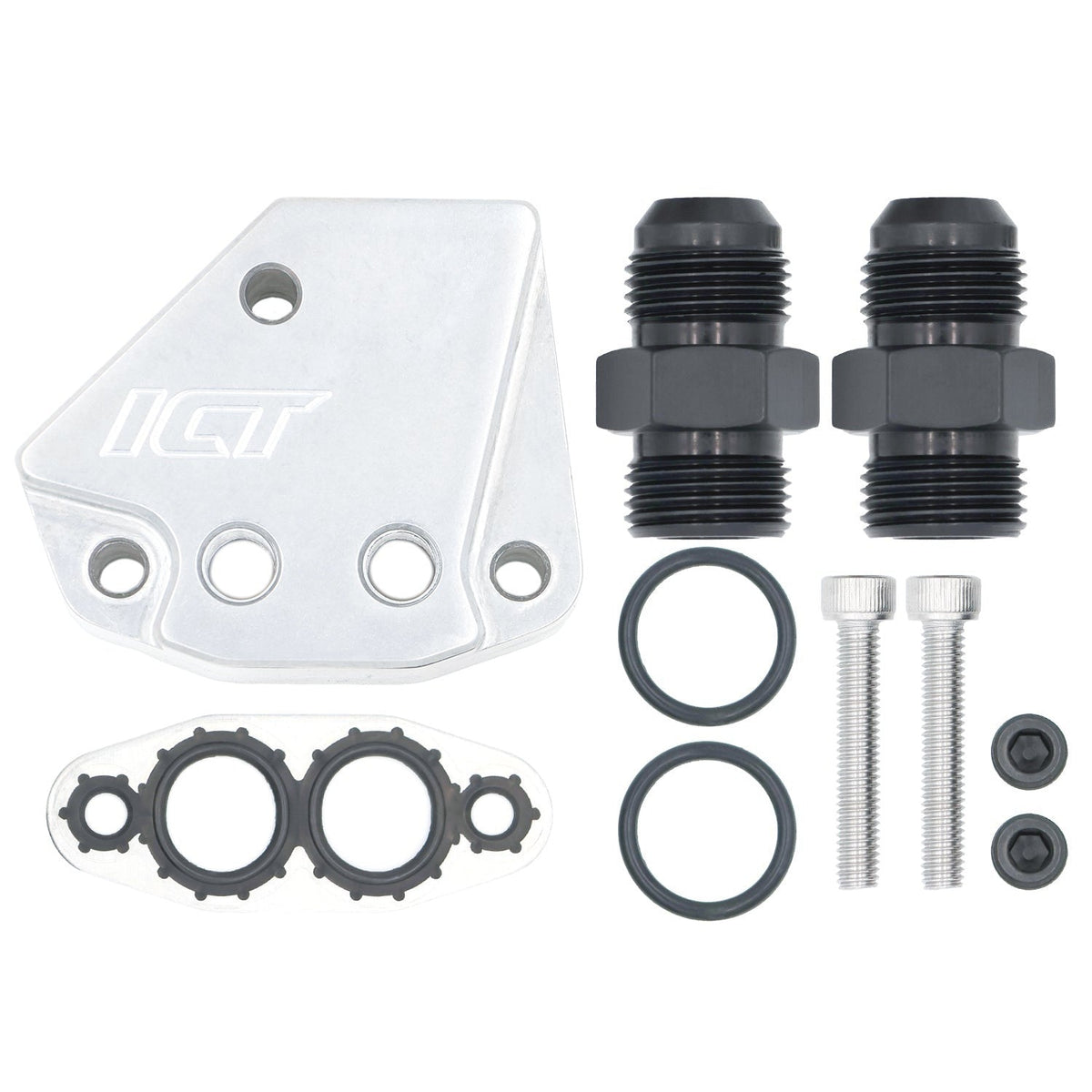

• Includes: adapter, 10AN/10ORB fittings x2, bolts, gasket, 1/8" NPT plugs x2
• Top fitting, that is pointing strait up is the "IN" fitting to return the oil
• Left angled fitting is the "OUT" feed to supply the oil cooler
• Dual 1/8" NPT ports on both inlet and outlet circuits for temperature and/or pressure monitoring.

Helpful Links

• Replacement -116oring
