ICT BILLET SBC to LS Engine Swap Bracket Set

LS Engine Swap / Engine Mount Brackets

Product details:

• These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine using your existing engine mounts (see photos).
• Made with OEM specifications for the best possible fitment into your vehicle
• These plates will move the crankshaft centerline up .177" in the vehicle from factory SBC location
• 4 positions for maximum engine adjustment (.100", .600", 1.86", 2.36" engine forward)
• Made in Wichita, Kansas from 6061-T6, USA produced billet aluminum

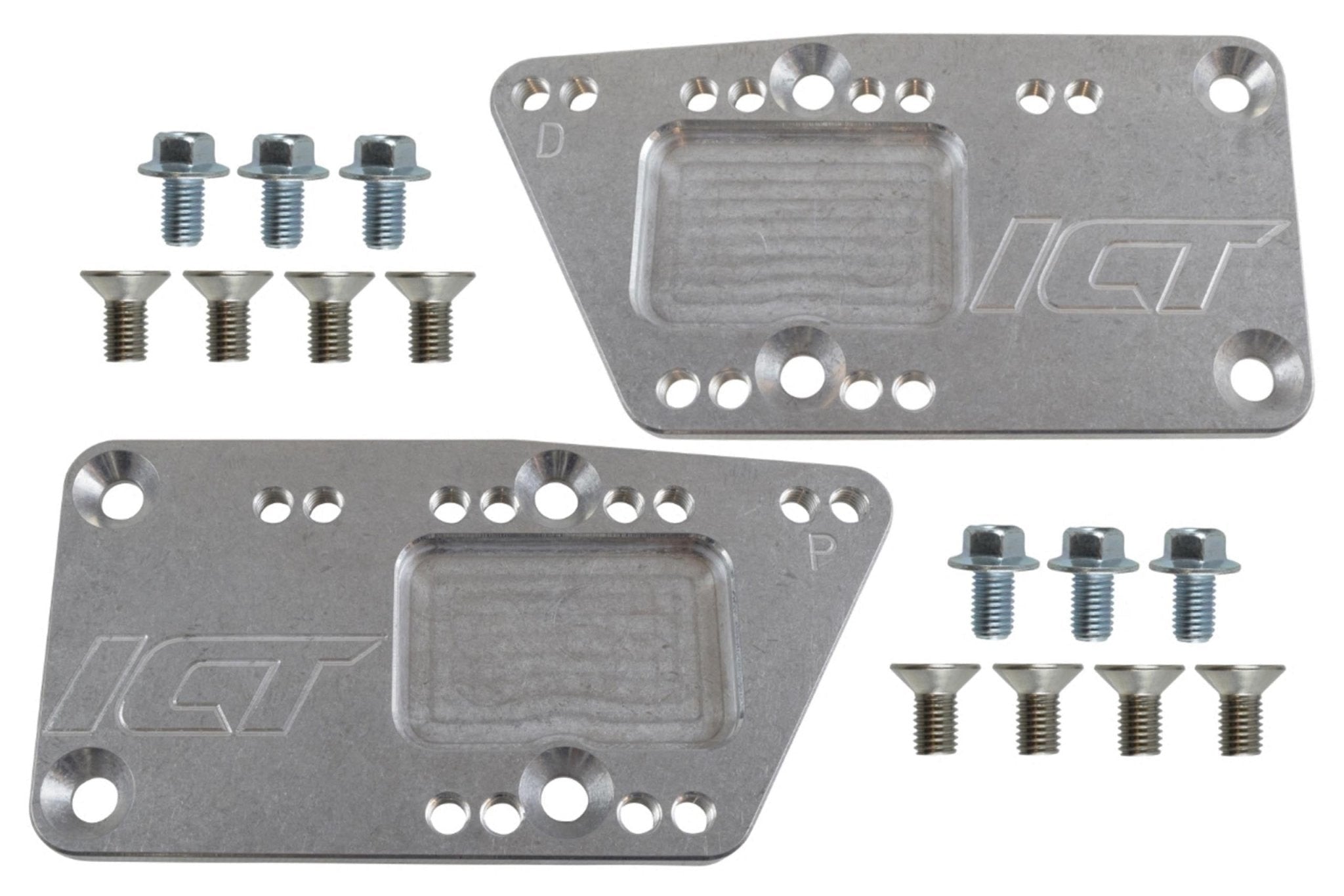

• Includes: instructions, 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
• Natural aluminum finish
• See our other listings for all your LS swap needs. Check out our "Tips and Guides" section on our page
• Does Not Include Engine Mounts

Compatible with (based on vehicle 3D scans by ICT)

• Chevrolet Nova              62-67

• Chevrolet Truck              47-55
• Chevrolet Corvette C4   84-96

Helpful Links & Guides

• Torque specs: Torque specs: Flange bolts (M10 = 37 lb-ft), FHSC bolts (M10 = 31 lb-ft)
